Prepared by:
HALBORN
Last Updated 03/25/2024
Date of Engagement by: February 16th, 2024 - March 12th, 2024
100% of all REPORTED Findings have been addressed
All findings
6
Critical
0
High
0
Medium
0
Low
2
Informational
4
Moonwell engaged Halborn to conduct a security assessment on their smart contracts beginning on February 16th and ending on March 12th. The security assessment was scoped to the smart contracts provided in the moonwell-fi/moonwell-contracts-v2 GitHub repository. Commit hashes and further details can be found in the Scope section of this report.
Halborn was provided 3.5 weeks for the engagement and assigned 1 full-time security engineer to review the security of the smart contracts in scope. The engineer is a blockchain and smart contract security expert with advanced penetration testing and smart contract hacking skills, and deep knowledge of multiple blockchain protocols.
The purpose of the assessment is to:
Identify potential security issues within the smart contracts.
Ensure that smart contract functionality operates as intended.
In summary, Halborn identified some security risks that were mostly addressed by the Moonwell team.
Halborn performed a combination of manual and automated security testing to balance efficiency, timeliness, practicality, and accuracy in regard to the scope of this assessment. While manual testing is recommended to uncover flaws in logic, process, and implementation; automated testing techniques help enhance coverage of the code and can quickly identify items that do not follow the security best practices. The following phases and associated tools were used during the assessment:
Research into architecture and purpose.
Smart contract manual code review and walkthrough.
Graphing out functionality and contract logic/connectivity/functions (solgraph).
Manual assessment of use and safety for the critical Solidity variables and functions in scope to identify any arithmetic-related vulnerability classes.
Manual testing by custom scripts.
Static Analysis of security for scoped contract, and imported functions (slither).
Testnet deployment (Foundry).
The contracts in scope were thoroughly and manually analyzed for potential vulnerabilities and bugs, as well as known optimizations and best practices when developing Smart Contracts in Solidity.
While no major vulnerabilities were found within the scope and time frame provided, it's always important to highlight good practices that were identified during the assessment, which contribute positively to the security maturity of the contracts in-scope, such as:
- Thorough documentation using NatSpec.
- Correct increment of i in for loops inside unchecked blocks for gas optimization.
- Pause mechanism (ConfigurablePauseGuardian contract and break glass functionality) implemented to protect the overall integrity of the ecosystem, protecting mission-critical functions to be called when the contracts are paused.
- The usage of Ownable2Step pattern is considered a good security practice and mitigates this risk by introducing a two-step process for ownership transfer. The current owner initiates the transfer by proposing a new owner, but the transfer only completes when the proposed new owner accepts it.
These security practices are applied industry-wide and should be considered in future implementations and developments.
External libraries and financial-related attacks.
New features/implementations after/with the remediation commit IDs.
| EXPLOITABILIY METRIC () | METRIC VALUE | NUMERICAL VALUE |
|---|---|---|
| Attack Origin (AO) | Arbitrary (AO:A) Specific (AO:S) | 1 0.2 |
| Attack Cost (AC) | Low (AC:L) Medium (AC:M) High (AC:H) | 1 0.67 0.33 |
| Attack Complexity (AX) | Low (AX:L) Medium (AX:M) High (AX:H) | 1 0.67 0.33 |
| IMPACT METRIC () | METRIC VALUE | NUMERICAL VALUE |
|---|---|---|
| Confidentiality (C) | None (I:N) Low (I:L) Medium (I:M) High (I:H) Critical (I:C) | 0 0.25 0.5 0.75 1 |
| Integrity (I) | None (I:N) Low (I:L) Medium (I:M) High (I:H) Critical (I:C) | 0 0.25 0.5 0.75 1 |
| Availability (A) | None (A:N) Low (A:L) Medium (A:M) High (A:H) Critical (A:C) | 0 0.25 0.5 0.75 1 |
| Deposit (D) | None (D:N) Low (D:L) Medium (D:M) High (D:H) Critical (D:C) | 0 0.25 0.5 0.75 1 |
| Yield (Y) | None (Y:N) Low (Y:L) Medium (Y:M) High (Y:H) Critical (Y:C) | 0 0.25 0.5 0.75 1 |
| SEVERITY COEFFICIENT () | COEFFICIENT VALUE | NUMERICAL VALUE |
|---|---|---|
| Reversibility () | None (R:N) Partial (R:P) Full (R:F) | 1 0.5 0.25 |
| Scope () | Changed (S:C) Unchanged (S:U) | 1.25 1 |
| Severity | Score Value Range |
|---|---|
| Critical | 9 - 10 |
| High | 7 - 8.9 |
| Medium | 4.5 - 6.9 |
| Low | 2 - 4.4 |
| Informational | 0 - 1.9 |
Critical
0
High
0
Medium
0
Low
2
Informational
4
| Security analysis | Risk level | Remediation Date |
|---|---|---|
| Cannot Grant Guardian Role After Kick Or Unpause | Low | Solved - 03/13/2024 |
| Wrong Event Emission On `_grantGuardian` Function | Low | Solved - 03/13/2024 |
| Centralization Risk For Trusted Owners | Informational | Acknowledged - 03/12/2024 |
| Lack Of Validations Can Brick Proposal State | Informational | Acknowledged - 03/12/2024 |
| Use Custom Errors | Informational | Acknowledged - 03/12/2024 |
| Events Are Missing `indexed` Attribute | Informational | Acknowledged - 03/12/2024 |
// Low
The ConfigurablePauseGuardian contract, which is inherited by MultichainGovernor contract, implements a custom pausing mechanism, defining the pause guardian role, which represents the address that is allowed to call the pause() function within the ConfigurablePauseGuardian contract.
Considering that MultichainGovernor contract inherits from ConfigurablePauseGuardian, we can infer from the following code snippet that a initial address is being attributed as pause guardian when initializing the MultichainGovernor contract:
- src/Governance/MultichainGovernor/MultichainGovernor.sol [Line: 204]
function initialize(
InitializeData memory initData,
WormholeTrustedSender.TrustedSender[] memory trustedSenders,
bytes[] calldata calldatas
) external initializer {
{ ... }
/// set the pause guardian
_grantGuardian(initData.pauseGuardian);
{ ... }
}The _grantGuardian internal function in ConfigurablePauseGuardian contract will set the newPauseGuardian address, as follows.
- src/xWELL/ConfigurablePauseGuardian.sol [Line: 93]
function _grantGuardian(address newPauseGuardian) internal {
address previousPauseGuardian = newPauseGuardian;
pauseGuardian = newPauseGuardian;
/// if a new guardian is granted, the contract is automatically unpaused
_setPauseTime(0);
emit PauseGuardianUpdated(previousPauseGuardian, newPauseGuardian);
}Moving forward, it is important to highlight that whenever we call the functions unpause or kickGuardian, the _resetPauseState internal function is called, which, from other things, sets the pauseGuardian address to the address(0).
- src/xWELL/ConfigurablePauseGuardian.sol [Line: 47]
function _resetPauseState() private {
address previousPauseGuardian = pauseGuardian;
pauseGuardian = address(0); /// remove the pause guardian
_setPauseTime(0); /// fully unpause, set pauseStartTime to 0
emit PauseGuardianUpdated(previousPauseGuardian, address(0));
}While effectively validating whether the caller of the pause function is indeed authorized to perform the pause operation (by checking if the msg.sender == pauseGuardian), and by implementing a safety mechanism such as kickGuardian to avoid unintended entities to stay as pause guardians , the current implementation of MultichainGovernor and ConfigurablePauseGuardian does not expose any public or external method, not even access-controlled, to grant guardian role to new addresses.
In other words, this means that after unpause or kickGuardian functions are called, effectively changing the pauseGuardian to address(0), it is impossible to set a new pauseGuardian because the only time the _grantGuardian function is called is within the initialization of the MultichainGovernor contract. This will prevent the MultichainGovernor contract from setting new pause guardians addresses.
It is recommended to add an access-controlled external function to the MultichainGovernor contract, that will enable setting the pauseGuardian to a new address, assuring that the pauseGuardian value is not bricked to address(0) after calling kickGuardian or unpause functions.
SOLVED: The Moonwell team has solved this issue by creating an external, access-controlled function grantPauseGuardian in the MultichainGovernor contract.
// Low
It is important to highlight the _grantGuardian internal function in ConfigurablePauseGuardian contract as follows:
- src/xWELL/ConfigurablePauseGuardian.sol [Line: 93]
function _grantGuardian(address newPauseGuardian) internal {
address previousPauseGuardian = newPauseGuardian;
pauseGuardian = newPauseGuardian;
/// if a new guardian is granted, the contract is automatically unpaused
_setPauseTime(0);
emit PauseGuardianUpdated(previousPauseGuardian, newPauseGuardian);
}We can observe that the event PauseGuardianUpdated is emitted with the same values for oldPauseGuardian and newPauseGuardian. This happens because the value attributed for address previousPauseGuardian is newPauseGuardian instead of pauseGuardian.
The MultichainGovernor contract is also impacted because it inherits from ConfigurablePauseGuardian.
It is recommended to modify the _grantGuardian function in ConfigurablePauseGuardian as follows:
function _grantGuardian(address newPauseGuardian) internal {
address previousPauseGuardian = pauseGuardian;
pauseGuardian = newPauseGuardian;
/// if a new guardian is granted, the contract is automatically unpaused
_setPauseTime(0);
emit PauseGuardianUpdated(previousPauseGuardian, newPauseGuardian);
}SOLVED: The Moonwell team has solved this issue as recommended in the provided code snippet.
// Informational
The smart contracts under analysis have owners with privileged rights to perform administrative operations and need to be trusted not to act maliciously.
- src/Governance/MultichainGovernor/MultichainVoteCollection.sol [Line: 371]
function setGasLimit(uint96 newGasLimit) external onlyOwner {- src/Governance/MultichainGovernor/MultichainVoteCollection.sol [Line: 382]
function setNewStakedWell(address newStakedWell) external onlyOwner {It is recommended to mitigate centralization issues by implementing multi-signature mechanisms. This prevents a single entity from performing administrative and protected tasks unilaterally.
ACKNOWLEDGED: The Moonwell team has acknowledged the issue and informed that potential centralization concerns are mitigated because in this case, the owner of the contract is the Temporal Governor.
// Informational
In the MultichainGovernor contract, proposals can be executed if they were previously succeeded, with arbitrary calldatas, values and targets contract addresses provided by the creator when calling the propose function, accordingly to the current implemented logic.
- src/Governance/MultichainGovernor.sol [Line: 721]
function execute(
uint256 proposalId
) external payable override whenNotPaused {
/// Checks
require(
state(proposalId) == ProposalState.Succeeded,
"MultichainGovernor: proposal can only be executed if it is Succeeded"
);
uint256 totalValue = 0;
Proposal storage proposal = proposals[proposalId];
for (uint256 i = 0; i < proposal.targets.length; ) {
totalValue += proposal.values[i];
unchecked {
i++;
}
}
require(totalValue == msg.value, "MultichainGovernor: invalid value");
/// Effects
proposal.executed = true;
/// remove the proposal that is about to be executed from all proposals,
/// and remove from inactive proposals from user list
_syncTotalLiveProposals();
/// Interactions
unchecked {
for (uint256 i = 0; i < proposal.targets.length; i++) {
proposal.targets[i].functionCallWithValue(
proposal.calldatas[i],
proposal.values[i],
"MultichainGovernor: execute call failed"
);
}
}
emit ProposalExecuted(proposalId);
}There are no verifications in place that validate whether the values provided by the creator when calling the propose function are legitimate. Likewise, there are no such verifications on the execute function, what could lead to malformed calls being performed to targets.
Moving forward, the call to targets[i].functionCallWithValue will revert in cases the constructed calldatas and values are not valid for that specific target. This could lead to a scenario where the proposal status is set to, butsucceeded can never be set to executed because of the failed calls.
It is recommended to perform validation on user-provided data (inputs) when the function propose is called. A whitelist mechanism, similar to the one applied to the break glass functionality would be a good starting point.
By whitelisting possible calldatas and targets, preferably, using mappings, it is possible to ensure that only valid and authorized arguments are passed when calling functionCallWithValue, making it less likely to revert.
Alternatively, enhancing the proposal state management, for example, adding a bool executionFailed element to the Proposal struct or adding ExecutionFailed to the ProposalState enum, both in the IMultichainGovernor could improve the handling of such scenarios. Moving in this direction, it would also be possible to modify the cancel function to handle these scenarios appropriately.
ACKNOWLEDGED: The Moonwell team accepted the risk in benefit of the contract being as future-proof as possible, as restricting that calldata only interacts with an allowed list of contracts, or must be executable/would not revert on propose, would be too restrictive and inflexible. The team mentioned it's an intended behavior because the additional contracts and calls the governor might need to make in the future are yet unknown.
// Informational
In Solidity smart contract development, replacing hard-coded revert message strings with the Error() syntax is an optimization strategy that can significantly reduce gas costs. Hard-coded strings, stored on the blockchain, increase the size and cost of deploying and executing contracts.
The Error() syntax allows for the definition of reusable, parameterized custom errors, leading to a more efficient use of storage and reduced gas consumption. This approach not only optimizes gas usage during deployment and interaction with the contract but also enhances code maintainability and readability by providing clearer, context-specific error information.
It is recommended to replace hard-coded revert strings in require statements for custom errors, which can be done following the logic below.
1. Standard require statement (to be replaced):
require(condition, "Condition not met");2. Declare the error definition to state:
error ConditionNotMet();3. As currently is not possible to use custom errors in combination with require statements, the standard syntax is:
if (!condition) revert ConditionNotMet();More information about this topic in Official Solidity Documentation.
ACKNOWLEDGED: The Moonwell team has acknowledged this finding and has opted not to perform modifications as an style decision.
// Informational
Indexed event fields make the data more quickly accessible to off-chain tools that parse events, and adds them to a special data structure known as “topics” instead of the data part of the log. A topic can only hold a single word (32 bytes) so if you use a reference type for an indexed argument, the Keccak-256 hash of the value is stored as a topic instead.
Each event can use up to three indexed fields. If there are fewer than three fields, all of the fields can be indexed. It is important to note that each index field costs extra gas during emission, so it's not necessarily best to index the maximum allowed fields per event (three indexed fields).
This is specially recommended when gas usage is not particularly of concern for the emission of the events in question, and the benefits of querying those fields in an easier and straight-forward manner surpasses the downsides of gas usage increase.
- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 15]
event StartBlockSet(uint256 proposalId, uint256 startBlock);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 18]
event VoteCast(- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 26]
event ProposalCreated(- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 38]
event ProposalCanceled(uint256 id);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 41]
event ProposalQueued(uint256 id, uint256 eta);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 44]
event ProposalExecuted(uint256 id);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 47]
event BreakGlassExecuted(- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 54]
event QuroumVotesChanged(uint256 oldValue, uint256 newValue);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 57]
event ProposalThresholdChanged(uint256 oldValue, uint256 newValue);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 60]
event VotingPeriodChanged(uint256 oldValue, uint256 newValue);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 63]
event BreakGlassGuardianChanged(address oldValue, address newValue);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 66]
event GovernanceReturnAddressChanged(address oldValue, address newValue);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 69]
event CrossChainVoteCollectionPeriodChanged(- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 75]
event UserMaxProposalsChanged(uint256 oldValue, uint256 newValue);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 83]
event CrossChainVoteCollected(- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 94]
event CalldataApprovalUpdated(bytes data, bool approved);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 99]
event ProposalRebroadcasted(uint256 proposalId, bytes data);- src/Governance/MultichainGovernor/IMultichainGovernor.sol [Line: 102]
event NewStakedWellSet(address newStakedWell, bool toUseTimestamps);- src/Governance/MultichainGovernor/IMultichainVoteCollection.sol [Line: 17]
event ProposalCreated(- src/Governance/MultichainGovernor/IMultichainVoteCollection.sol [Line: 29]
event VotesEmitted(- src/Governance/MultichainGovernor/IMultichainVoteCollection.sol [Line: 41]
event VoteCast(- src/Governance/MultichainGovernor/IMultichainVoteCollection.sol [Line: 49]
event NewStakedWellSet(address newStakedWell);It is recommended to add the indexed keyword when declaring events, considering the following example:
event Indexed(
address indexed from,
bytes32 indexed id,
uint indexed value
);ACKNOWLEDGED: The Moonwell team has acknowledged the finding.

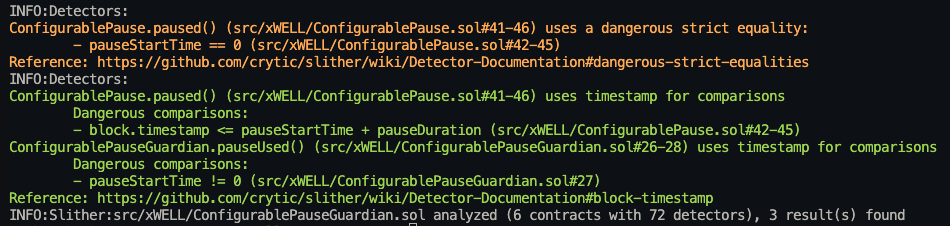

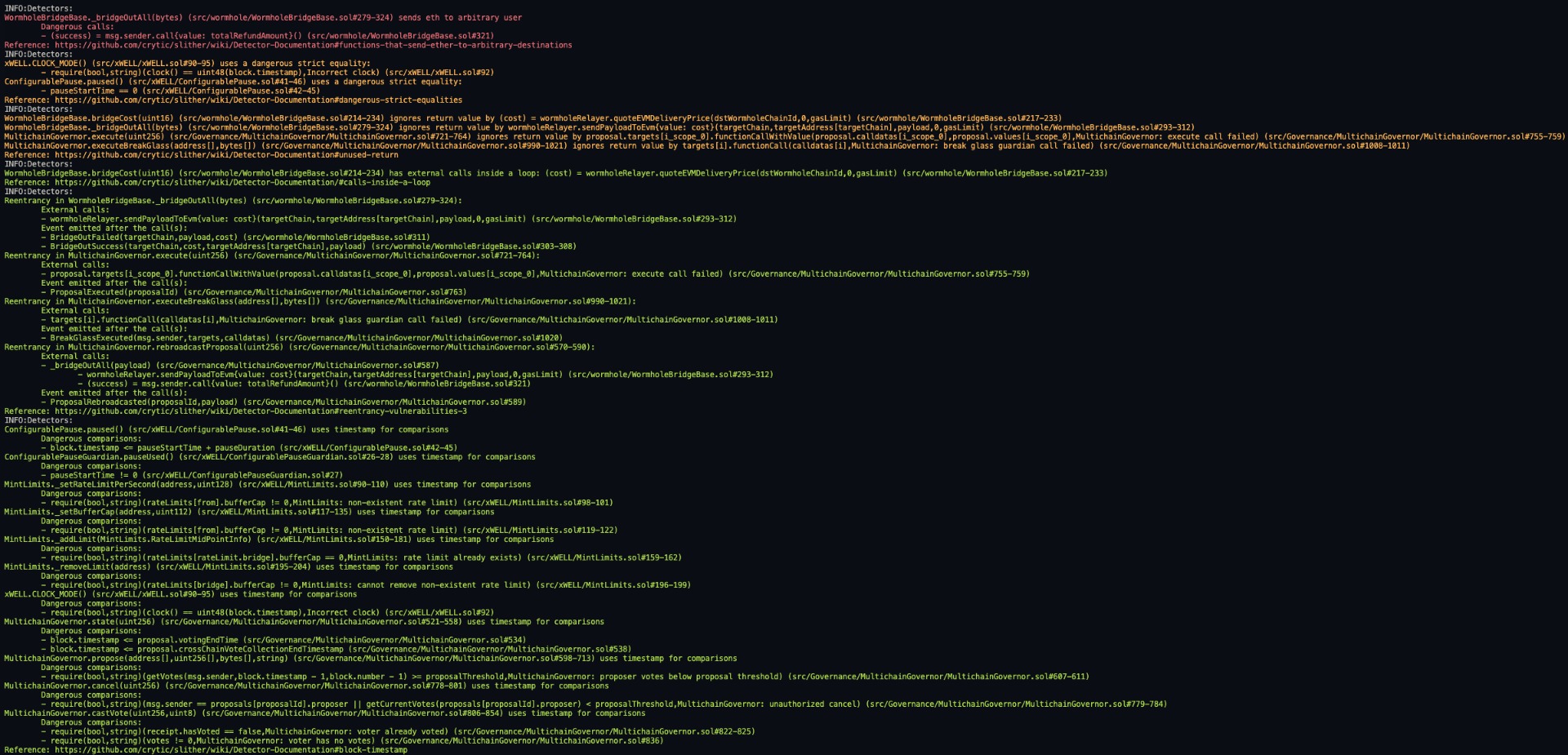

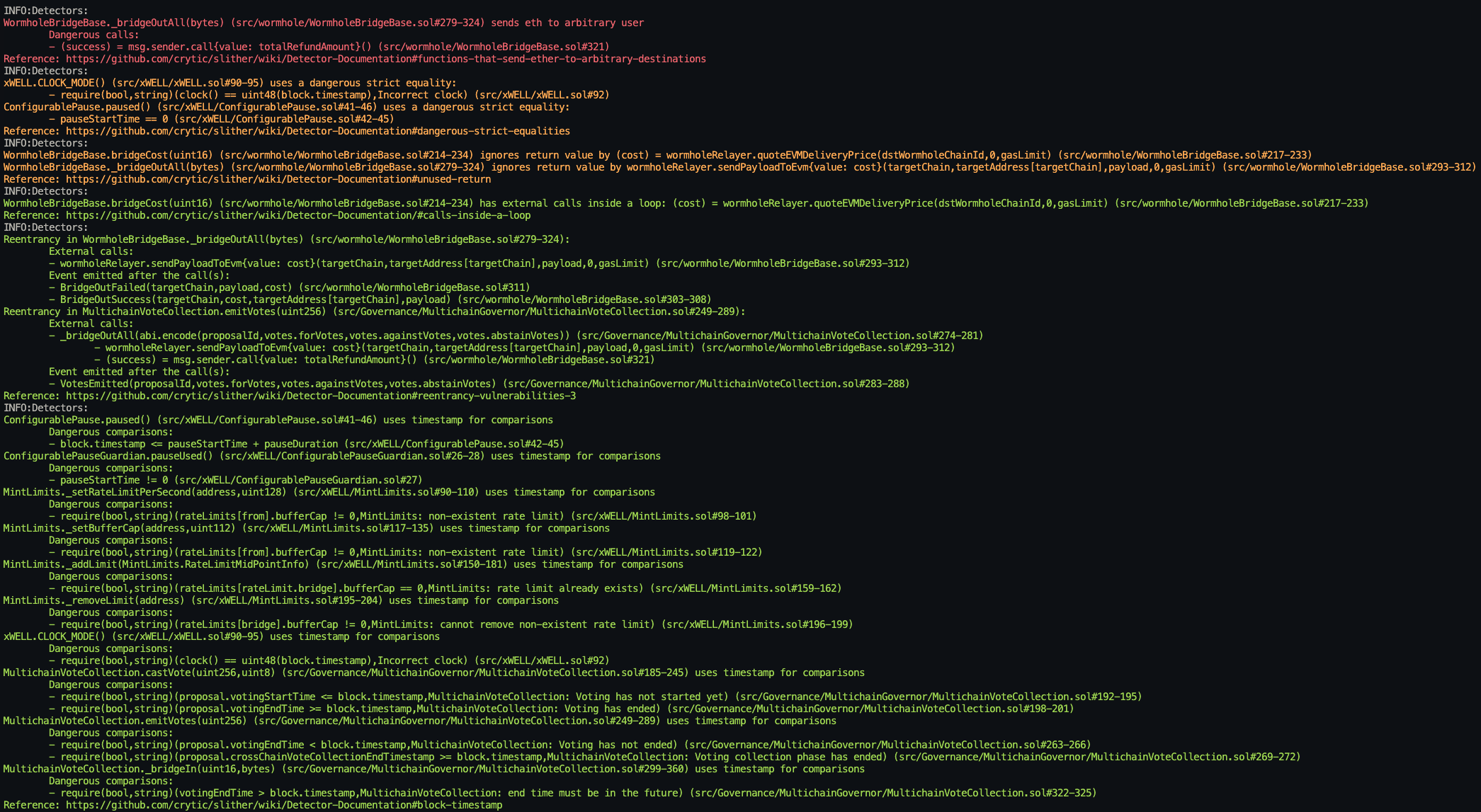

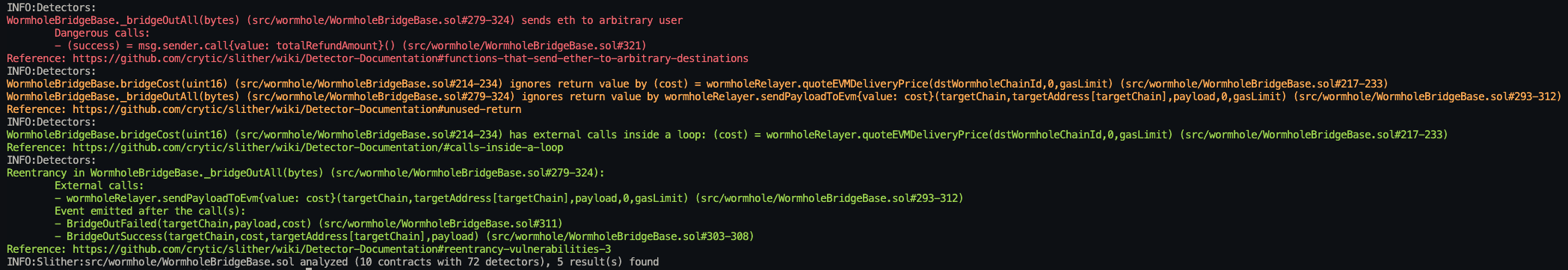

Halborn used automated testing techniques to enhance the coverage of certain areas of the smart contracts in scope. Among the tools used was Slither, a Solidity static analysis framework. After Halborn verified the smart contracts in the repository and was able to compile them correctly into their abis and binary format, Slither was run against the contracts. This tool can statically verify mathematical relationships between Solidity variables to detect invalid or inconsistent usage of the contracts' APIs across the entire code-base.
The security team assessed all findings identified by the Slither software, however, findings with severity Information and Optimization are not included in the below results for the sake of report readability.
The findings obtained as a result of the Slither scan were reviewed, and they were not included in the report because they were determined false positives.
Halborn strongly recommends conducting a follow-up assessment of the project either within six months or immediately following any material changes to the codebase, whichever comes first. This approach is crucial for maintaining the project’s integrity and addressing potential vulnerabilities introduced by code modifications.
